MX7547KCWG+
Manufacturer:
Analog Devices / Maxim Integrated
Mfr.Part #:
MX7547KCWG+
Datasheet:
Description:

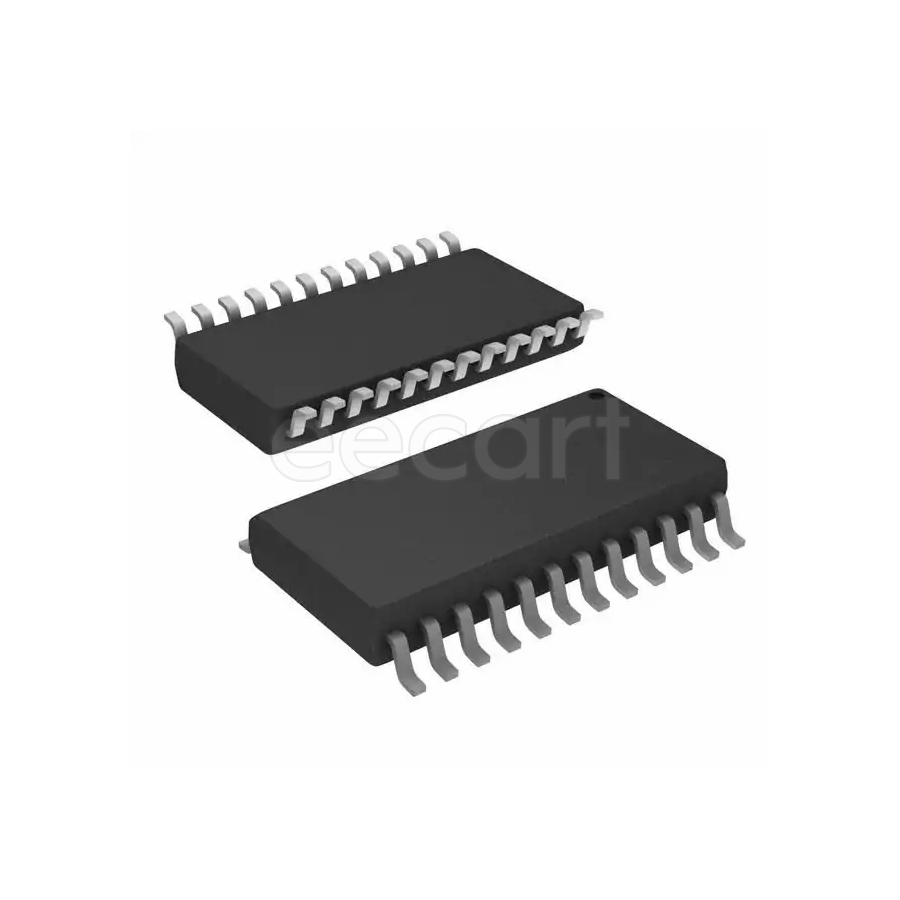

Digital to Analog Converters (DACs) SOIC-24 SMD/SMT number of channels:2 number of bits:12 Number of D/A Converters:2
| Parameter | Value |
|---|---|
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 24 |
| Radiation Hardening | No |
| Interface | Parallel |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Max Power Dissipation | 450 mW |
| Max Supply Voltage | 16.5 V |
| Min Supply Voltage | 10.8 V |
| Number of Channels | 2 |
| Number of Bits | 12 |
| Supply Type | Single |
| Number of DAC Channels | 2 |
| Integral Nonlinearity (INL) | 0.5 LSB |
| Number of Converters | 2 |
| Settling Time | 1.5 µs |
| Nominal Supply Current | 10 µA |
| Resolution | 1.5 B |
| Number of D/A Converters | 2 |
| Differential Output | No |
| RoHS | Compliant |
| Packaging | Tube |
| Analog Supply Voltage | 10.8 V to 16.5 V |
| Max Digital Supply Voltage | 16.5 V |
| Min Digital Supply Voltage | 10.8 V |
| Reference Type | External |
| Interface Type(Data Interface) | Parallel |
| Core Architecture(core/core processor) | R-2R |
| Output Type | Current - Unbuffered |
Stock: 4
Distributors
pcbx
pcbxUnit Price$27.03458
Ext.Price$27.03458
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $27.03458 | $27.03458 |
| 10 | $26.06253 | $260.62530 |
| 25 | $23.61335 | $590.33375 |
| 50 | $21.39433 | $1069.71650 |
| 100 | $19.38382 | $1938.38200 |
